Lethal Performance 2020 Shelby GT500 5.2L Return Style Fuel System
This is why we developed our Lethal Performance 2020 Shelby GT500 return style fuel system. Our systems come as dual pump setups with the option to add a third pump. So depending on the HP level you're wanting to support you can build your kit to suite your specific needs.
The system uses a set of the DivisionX billet Coyote fuel rails and is run in a traditional style routing for the hoses. We accomplish this by using a Y-block at the end of the main feed line which then feeds each aftermarket fuel rail from the rear. We then leave each rail from the front and feed the Aeromotive X1 Series Pro EFI Bypass Regulator where the fuel is regulated and then returned to the tank.
Utilizing the DivisionX S197-C billet fuel hat as the system's backbone you can run up to 3 pumps based on what type of power you're looking to support and what fuel you'll be using, and we're including our plug and play triple pump harness in your kit regardless of how many pumps you start with! We then run a 10an feed line to our aftermarket fuel filter, into a Y-Block, and straight to the back of the DivisionX fuel rails. Our full return system uses all Fragola PTFE fuel hoses which are pre-assembled and won't leak or smell of fuel.
Why go with this system as opposed to others that use a factory style fuel hat and pump setup? This system has much more capability than other kits on the market and as mentioned can easily begin or be upgraded to a triple pump setup. Our competitors systems are stuck using only 2 inferior fuel pumps where this system has the option to use up to three of the top notch pump offerings from Walbro.

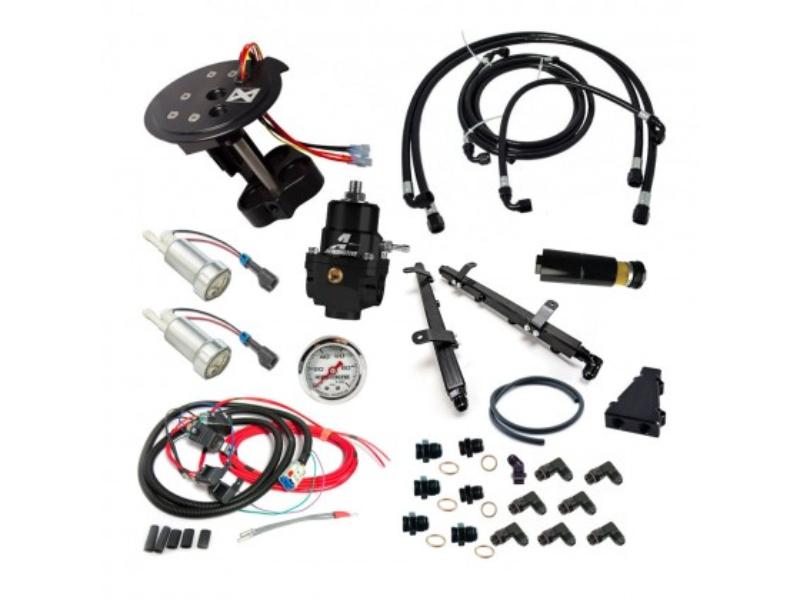

- DivisonX S197-C Triple Pump Fuel Hat
- DivisionX Billet Shelby GT500 Fuel Rails
- Aeromotive X1 Series Pro EFI Bypass Regulator 250gph (with fuel pressure gauge)
- DivisionX Triple Pump Return Style Wiring Harness
- DivisionX High Flow Fuel Filter (Stainless Washable E85 Compatible Element Optional)
- Walbro F90000267 465lph E85 Approved Fuel Pumps (upgradable)
- Fragola Pre-Assembled PTFE Feed and Return Lines
- All Fittings and Hardware Needed for Installation
